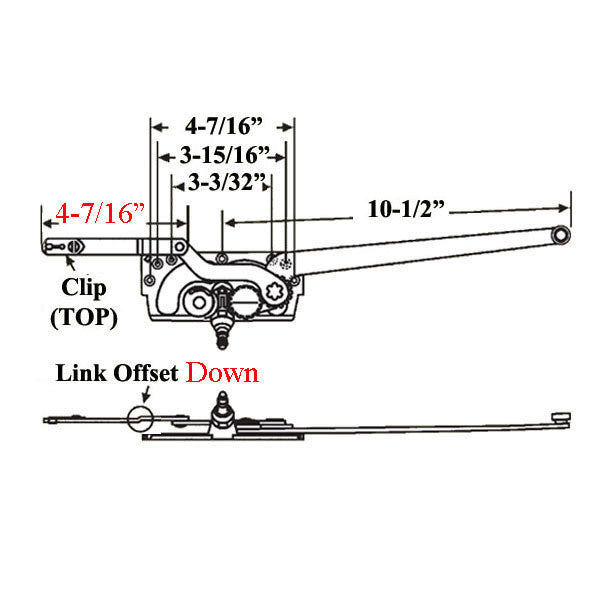

Truth EntryGard Casement Crank Operator, Gold Spline, Dual Arm, Sill Mounted
Number on4-7/16Link: Link # 20810 or 20544.
The Link is offset down
Straight Arm Length: 10-1/2 inches (center of operator to edge of button)
Link Length: 4-7/16 inches, offset link - DOWN
Arm Type: Dual arm - Straight arm, no offset, split arm with offset link.
Roller Material: Nylon
Roller Size: 9/16 inch diameter; 3/16 inch thick
Handing: Right Handed, as shown in picture (Handing is determined by the side the hinge is on, as viewed from outside).
Related EntryGard Operators:
55053 - Link Offset UP, Left Hand
55054 - Link Offset UP, Right Hand
55057 - Link Offset DOWN, Left Hand
55058 - Link Offset DOWN, Right Hand
