Description

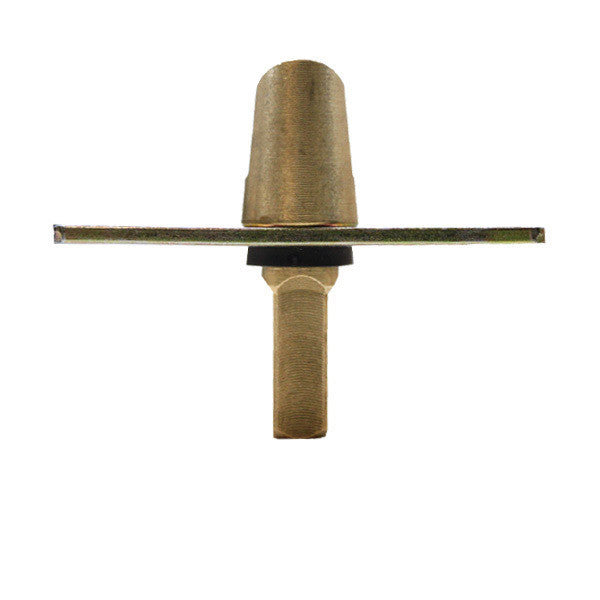

Fork Connector with Plate for Double French Casement Window.
This French window part attaches to the window sash, leaving a clear span without a mull post when both sashes are open.

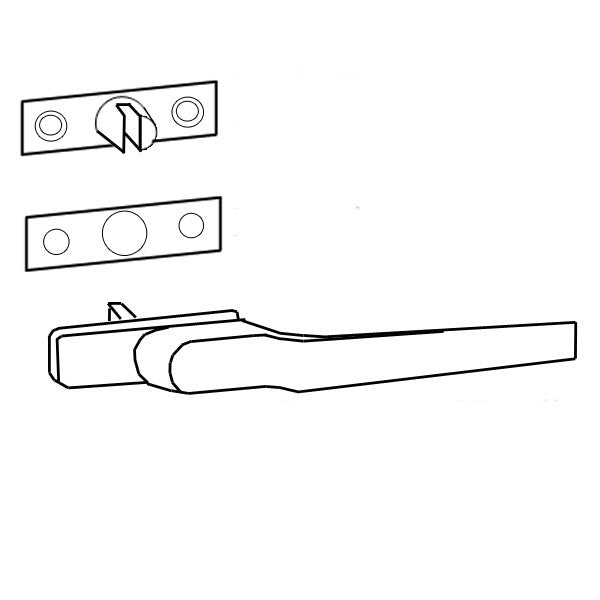

This is used with a HOPPE French Casement Window handle, which has a shaft that extends through the mounting plate (part number 2342856) and then connects with the fork and turns it, which engages the gear that locks the window sash.
Length: 1-7/8 Inch
Faceplate Length: 2-3/8 Inch
Faceplate Width: 5/8 Inch
Hole Center: 1-3/4 Inch
Spindle measurement from behind the plate: 15/16"
Top fork is positioned 7/8" above the plate
Distance for the opening of the fork: 3/16"
Contents: 1 Fork Connector
French Casement Hardware is Priced and Sold Each.
Available, Shaft Lengths
3849077- 20.5 mm /0.807 inch
3849085- 24.0mm /0.9448 inch
3849093- 29.5 mm /1.1614 inch
